External crack repair method for concrete structures
Patent No. 10-2037809This is a construction method for repairing peeled areas on the concrete base and repairing external cracks during exterior painting and waterproofing of buildings. It repairs peeled areas in concrete by mixing mortar coat and Remital to add anti-rust function to exposed areas of steel bars and prevents re-defects with strong adhesion. It is a method of improving the durability of the painting by completely repairing cracks on the surface using High seal, a high-elasticity crack repair agent.
01Excellent elongation rate Complete crack repair by using High seal which has 900% elongation rate, the highest rate in Korea
02Strong adhesion The excellent adhesion performance of the mortar coat prevents re-defects by strongly adhering to all surfaces without applying a primer.
03Excellent durability Chemical resistance and strong durability against external environments such as base, moisture, and UV rays
04Convenient constructability Complete repair of cracks is possible with only one application, reducing labor costs and shortening the construction period
05Economical method It is a water-soluble inorganic sealing agent that does not generate organic compounds or oil, so the paint is maintained for a long time, making it economical

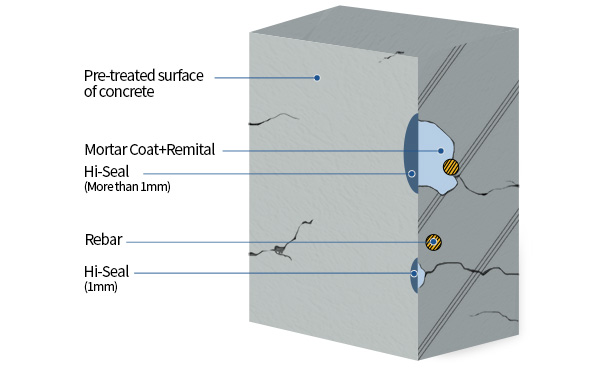

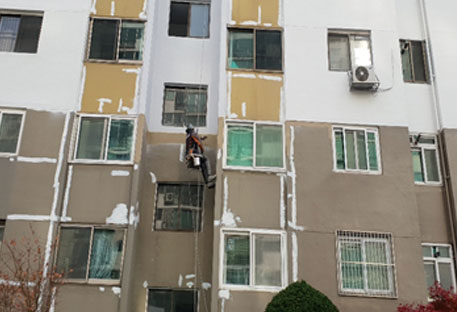

Repair of peeled areas and cracks on the base surface during interior and exterior painting of buildings and waterproofing
01 Surface preparation
- Scrap off the damaged and corroded parts of the base surface and clean them thoroughly using a high-pressure washer.02 Mortar coat repair

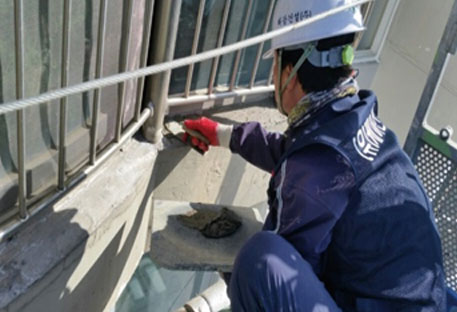

- Repair the dropped parts and dents of concrete so that the base surface is smooth and even by mixing Mortar coat + Remital.03 Application of Hi-seal crack repair agent
- According to the condition of the crack, apply High seal, high elasticity crack repair agent 1 to 2 times with a thickness of 1 mm to 2 mm.04 Painting

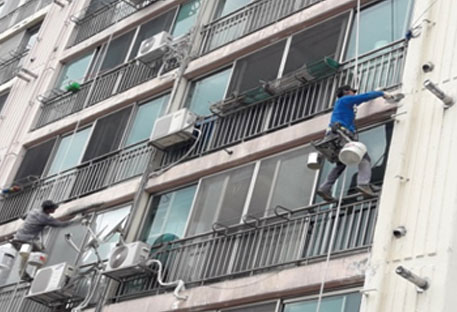

- When the crack repair agent is completely cured, apply the paint. - After the main painting, apply a finish coat such as design painting, etc.
